Injection Mould Tool

Category
Degree
About This Project

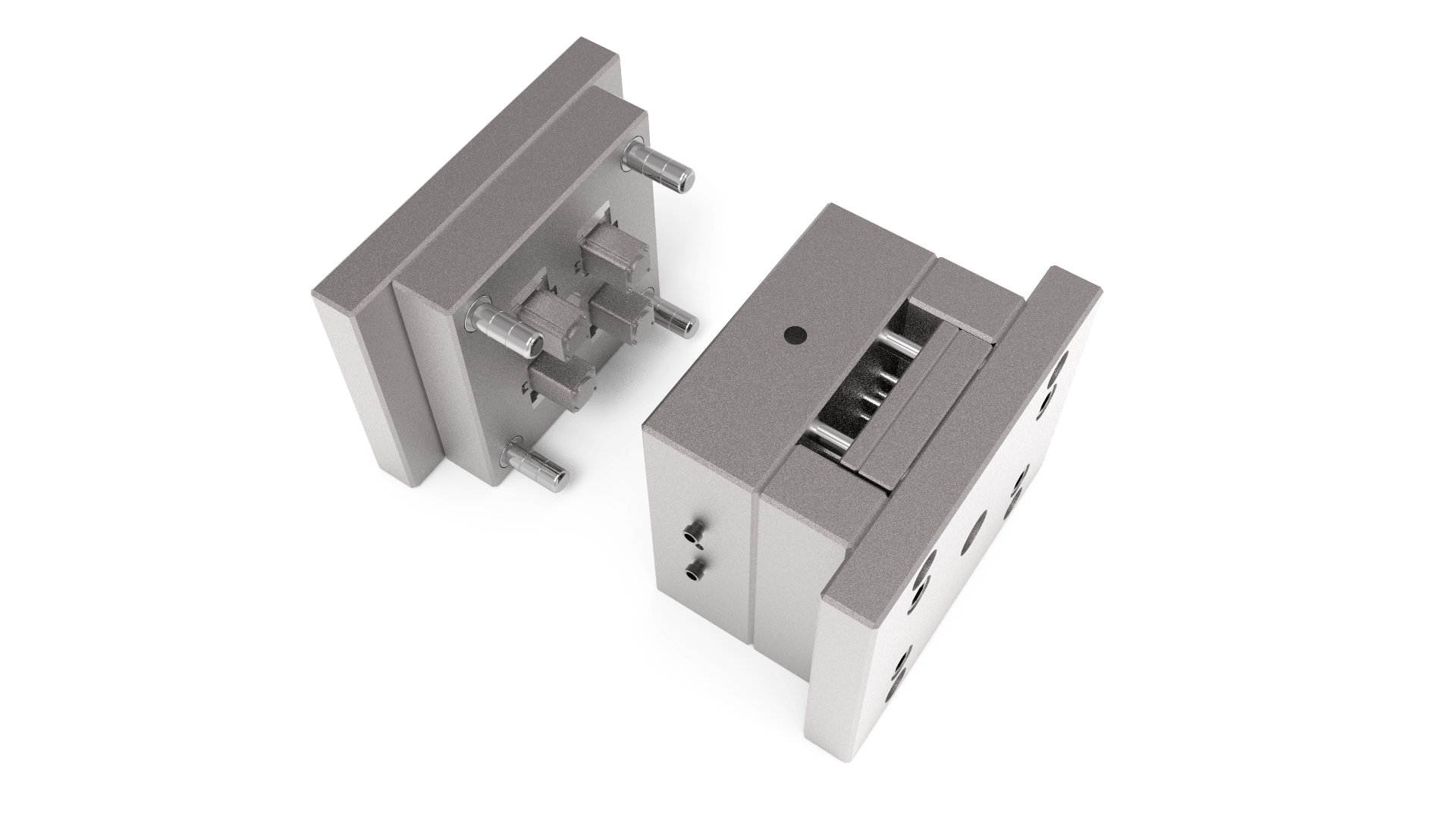

This is an injection mould tool that I designed to produce parts for my electronics pick-n-place machine.



It consists of a 150x150mm mould base, which produces 4 parts per injection.



The mould was created with inserts for more intricate features, which are machined separately and secured in place, which allows the mould to be CNC machined easily.



The mould features an ejection system which automatically removes parts after each shot, and an integrated water cooling system ensures the mould halves remain cool.
